2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors (2sets 1kg+HX711)

4.7 · 36 reviews

Listed on Amazon UAE

From — pick your option

From $40

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Each size and colour has its own price at the store and can change up to the last minute. We confirm the price of the option you picked when we buy it.

Express $57~0.1 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from Amazon UAE and deliver it to your door — you pay the store's price plus our service fee.

Size *

Prices differ per size — pick yours to see the exact delivered price.

View on the store

Related versions

2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors (2sets 5kg+HX711)

$47

About this item

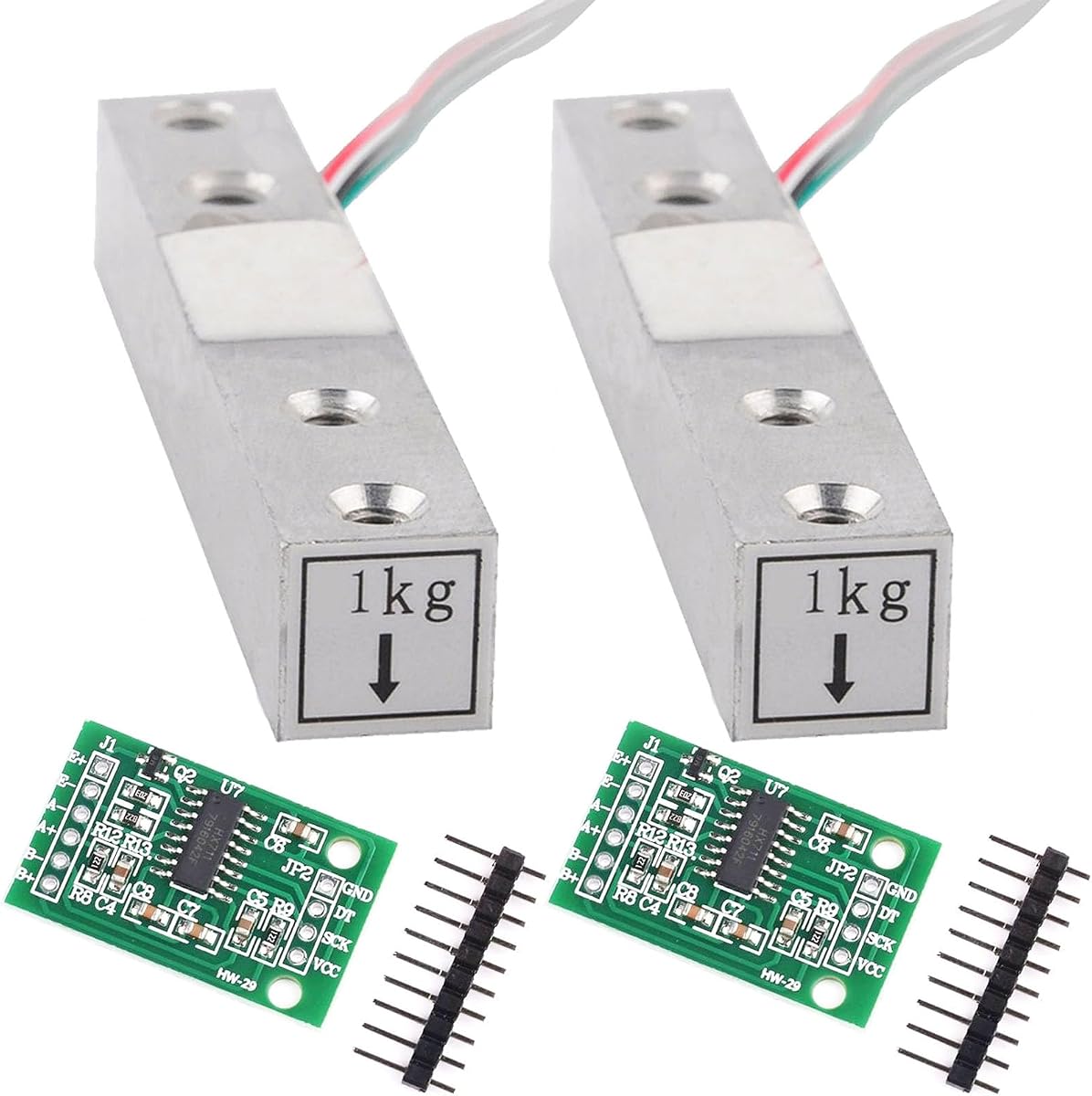

This listing gets you 2 aluminium alloy load cell sensors rated at 1kg, bundled with an HX711 amplifier module (sensor model YZC-133). Each cell measures 12.7 x 12.7 x 80mm and uses a four-wire connection (red/black/green/white) running on 5-10V excitation to output a voltage signal proportional to weight. Mount one end fixed and let the other end float per the label direction, and avoid pushing on the white plastic cover so the sensor stays accurate. Suited for kitchen scales, small appliance weighing, pet feeders, and general Arduino/DIY projects.

Set includes 2 aluminium alloy load cells (1kg capacity) plus an HX711 amplifier module, model YZC-133.
Compact bar shape, 12.7 x 12.7 x 80mm, parallel beam design for accurate small-scale readings.
Four-wire hookup: red = E+, black = E-, green = A+, white = A-; runs on 5-10V excitation, rated output 1.0±0.15mV/V.
Fix one end with a screw and leave the other end free to flex; don't press directly on the white plastic tip.
Handles up to 120% rated overload, works in temperatures from -20°C to 65°C.
Good fit for Arduino/DIY builds, kitchen scales, small appliance force measurement, or pet feeders.

Specifications

ASIN: B0CRDBJ8L7
Size: ‎2sets 1kg+HX711
Item Weight: ‎60 g
Customer Reviews: 4.7 4.7 out of 5 stars (36) 4.7 out of 5 stars
Item model number: ‎FZ1878X2
Package Dimensions: ‎10.7 x 10 x 2.2 cm; 60 g
Date First Available: 9 August 2024
